“实现施工效率倍增的混凝土布料机”
“Concrete Placing Booms for Multiplying Construction Efficiency“
中沃混凝土布料机 HGY33/36系列
Zoomwolf HGY33/36-Series Concrete Placing Boom
灵活布料，重构高层建筑施工效率新标准 Flexible placing, redefining efficiency standards for high-rise construction
中沃HGY33/36系列混凝土布料机以大作业范围、高可靠性、灵活配置为核心优势，适配核电、桥梁、超高层建筑等场景。模块化的设计与国际品牌部件保障了布料机长期稳定运行，而双模遥控与耐磨管道选项进一步提升了施工效率与成本可控性。
Zoomwolf HGY33/36-Series Concrete Placing Boom take large working range, high reliability and flexible configuration as the core advantages, which are suitable for nuclear power, bridge, super high-rise building and other scenarios. The modular design and international brand components ensure the long-term stable operation of the fabricator, while the dual-mode remote control and wear-resistant piping options further enhance the construction efficiency and cost controllability.
Zoomwolf HGY33 Series Concrete Placing Boom
Zoomwolf HGY36 Series Concrete Placing Boom
Parameters, installation, packaging and related documentation
产品概述 Product Overview
- 产品亮点 Features
- 产品规格 Specification

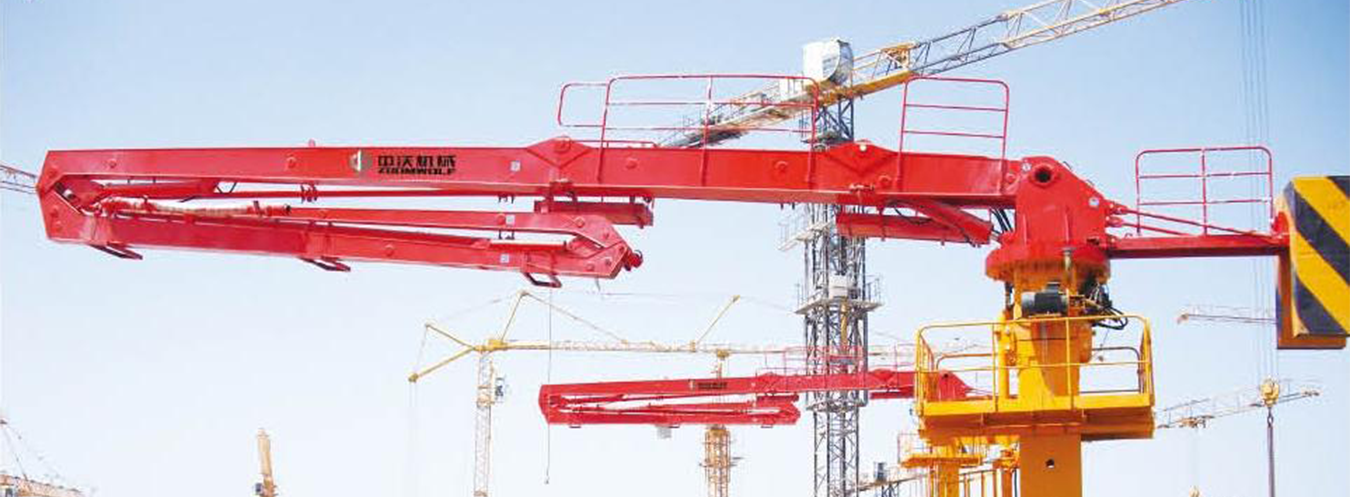

中沃混凝土布料机 HGY33 系列 Zoomwolf HGY33-Series Concrete Placing Boom
产品亮点 Features
- 1. 核心性能参数优势 / Core Performance Parameter Advantages
- 超大作业范围（Large Operating Range）
- 最大布料半径33米，独立高度22.7米，回转角度400°，覆盖范围广，适用于高层建筑、核电工程等大型项目 Maximum placing radius: 33m; Free-standing height: 22.7m; Slewing range: 400°, providing extensive coverage for large-scale projects such as high-rise buildings and nuclear power plants.
- 末端软管长度5英寸×3米，输送管径DN125mm，保障混凝土输送效率 End hose: 5″×3m; Delivery pipe diameter: DN125mm, ensuring efficient concrete conveying.
- 高效液压系统（High-Efficiency Hydraulic System）
- 系统压力32MPa，流量18L/min，搭配Y2-200L-4型电机（15kW），动力强劲且运行稳定 System pressure: 32MPa; Flow rate: 18L/min; Equipped with Y2-200L-4 motor (15kW) for robust and stable operation.
- 油箱容积280L，支持长时间连续作业 Oil tank capacity: 280L, supporting prolonged continuous operation.
- 超大作业范围（Large Operating Range）
- 2. 结构设计与可靠性 / Structural Design and Reliability
- 优化结构设计（Optimized Structural Design）
- 骨架与立柱采用紧凑设计，内藏式液压油箱节省空间，整机质量轻 Compact boom and column structure with integrated hydraulic oil tank, reducing overall weight and saving space.
- 管柱截面0.75×0.75米，支撑稳固，适应复杂施工场景 Column cross-section: 0.75×0.75m, providing stable support for complex construction environments.
- 关键部件国际品牌（International Brand Components）：液压与电气系统核心元件选用国际知名品牌，确保设备安全性和长期稳定性 Key hydraulic and electrical components from globally renowned brands ensure safety and long-term reliability.
- 优化结构设计（Optimized Structural Design）
- 3. 灵活配置与智能化控制 / Flexible Configuration and Intelligent Control
- 多样化选型配置（Diverse Configuration Options）
- 调速方式：可选有级调速（S型）或比例无级调速（P型），满足不同精度需求 Speed adjustment: Step-speed (S-type) or proportional stepless-speed (P-type) options for varied precision requirements.
- 平衡重配置：标准型无配重，可选配2930kg配重（C型） 提升稳定性 Counterweight: Standard models without counterweight; Optional 2930kg counterweight (C-type) for enhanced stability.
- 爬升方式：支持楼面内爬（预留孔）或电梯井内爬（井道尺寸1.9-2.7米），步距0.52米，适应不同施工环境 Climbing modes: Floor climbing (pre-drilled holes) or shaft climbing (shaft size: 1.9-2.7m), with a step distance of 0.52m for versatile adaptation.
- 立柱长度：可选5米、8米、10米，灵活匹配项目需求 Column lengths: 5m, 8m, or 10m options to meet project-specific needs.
- 双模智能控制（Dual-Mode Intelligent Control）：支持有线+无线遥控，操作便捷，提升施工效率与安全性 Wired + wireless remote control for convenient operation, improving efficiency and safety.
- 多样化选型配置（Diverse Configuration Options）
- 4. 高耐磨管道选项 / High-Wear-Resistant Pipe Options
- 管道寿命可选（Pipe Lifespan Options）
- 普通直管/弯管：单层设计，使用寿命≤20,000m³，经济实惠 Standard pipes/bends: Single-layer design with a lifespan ≤20,000m³, cost-effective.
- 高耐磨双层管道：使用寿命≥50,000m³，适合高强度、长期工程需求 High-wear-resistant double-layer pipes: Lifespan ≥50,000m³, ideal for high-intensity and long-term projects.
- 管道寿命可选（Pipe Lifespan Options）
产品规格 Specification
| Model of Placing Boom | HGY33S-3R / HGY33P-3R |
|---|---|
| Max. Radius(m) | 33m |
| Free Standing Height,Slewing Rang | 22.7m, 400° |
| Working temperature(℃) | 0～60℃ |
| Counter weight(kg) | / |
| Total weight(kg) | 21000 |
| Supply power to equipment | 380V/50Hz |
| Electric motor: Motor Model | Y2-200L-4 |
| Electric motor: Power(kw) | 15 |
| Hydraulic system: System pressure(MPa) | 32 |
| Hydraulic system: Flow(L/min) | 18 |
| Hydraulic system: Oil tank capacity(L) | 280 |
| Control mode | (Cable+Radio) remote control |
| Clearing mode for concrete pipe | Water clear / Dry clear |
| Section of tubular column(m×m) | 0.75 × 0.75 |
| Arm(Booms): Boom model | fully hydraulic foldable arms |
| Arm(Booms): Delivery pipeline diameter | DN125mm |
| Arm(Booms): Length of end hose(〃×m） | 5〃×3 |
| Arm(Booms): Climbing Mode | Cylinder Jack Lifting |
| Arm(Booms): Internal Climbing Step Distance(m) | 0.52 |
| Arm(Booms): Floor Frame | Hole Prepared in Floor |
| Arm(Booms): Shaft Frame | Size of Climbing Shaft: 1.9m-2.7m |
| Min. Space Between Internal Climbing Frame: Climbing(m) | 3 |
| Min. Space Between Internal Climbing Frame: Placing Concrete(m) | 6 |
| Min. Space Between Internal Climbing Frame: Rest(m) | 6 |
* Download the complete specification sheet from the related documentation below *
产品概述 Product Overview
- 产品亮点 Features
- 产品规格 Specification

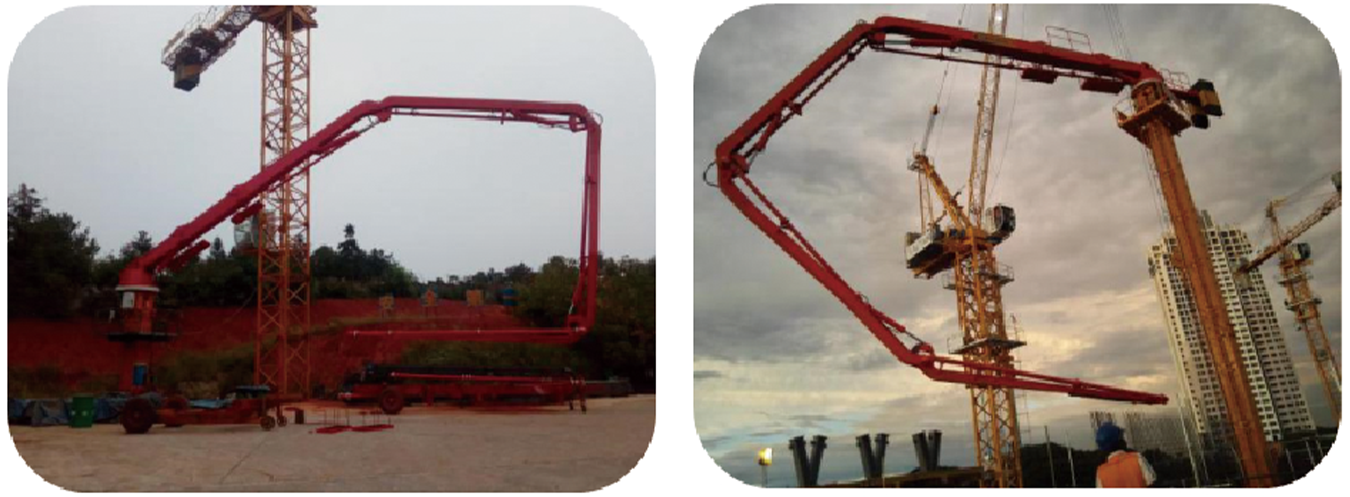

中沃混凝土布料机 HGY36 系列 Zoomwolf HGY36-Series Concrete Placing Boom
产品亮点 Features
- 1. 核心性能参数优势 / Core Performance Parameter Advantages
- 超大作业范围（Large Operating Range）
- 最大布料半径36米，独立高度22.7米，回转角度400°，覆盖范围广，适用于高层建筑、核电工程等大型项目 Maximum placing radius: 36m; Free-standing height: 22.7m; Slewing range: 400°, providing extensive coverage for large-scale projects such as high-rise buildings and nuclear power plants.
- 末端软管长度5英寸×3米，输送管径DN125mm，保障混凝土输送效率 End hose: 5″×3m; Delivery pipe diameter: DN125mm, ensuring efficient concrete conveying.
- 高效液压系统（High-Efficiency Hydraulic System）
- 系统压力32MPa，流量34L/min或47L/min，搭配Y2-200L-4型电机（30kW），动力强劲且运行稳定 System pressure: 32MPa; Flow rate: 34L/min or 47L/min; Equipped with Y2-200L-4 motor (30kW) for robust and stable operation.
- 油箱容积280L，支持长时间连续作业 Oil tank capacity: 280L, supporting prolonged continuous operation.
- 超大作业范围（Large Operating Range）
- 2. 结构设计与可靠性 / Structural Design and Reliability
- 优化结构设计（Optimized Structural Design）
- 骨架与立柱采用紧凑设计，内藏式液压油箱节省空间，整机质量轻 Compact boom and column structure with integrated hydraulic oil tank, reducing overall weight and saving space.
- 管柱截面0.75×0.75米，支撑稳固，适应复杂施工场景 Column cross-section: 0.75×0.75m, providing stable support for complex construction environments.
- 关键部件国际品牌（International Brand Components）：液压与电气系统核心元件选用国际知名品牌，确保设备安全性和长期稳定性 Key hydraulic and electrical components from globally renowned brands ensure safety and long-term reliability.
- 优化结构设计（Optimized Structural Design）
- 3. 灵活配置与智能化控制 / Flexible Configuration and Intelligent Control
- 多样化选型配置（Diverse Configuration Options）
- 调速方式：可选有级调速（S型）或比例无级调速（P型），满足不同精度需求 Speed adjustment: Step-speed (S-type) or proportional stepless-speed (P-type) options for varied precision requirements.
- 平衡重配置：标准型无配重，可选配2930kg配重（C型） 提升稳定性 Counterweight: Standard models without counterweight; Optional 2930kg counterweight (C-type) for enhanced stability.
- 爬升方式：支持楼面内爬（预留孔）或电梯井内爬（井道尺寸1.9-2.7米），步距0.52米，适应不同施工环境 Climbing modes: Floor climbing (pre-drilled holes) or shaft climbing (shaft size: 1.9-2.7m), with a step distance of 0.52m for versatile adaptation.
- 立柱长度：可选5米、8米、10米，灵活匹配项目需求 Column lengths: 5m, 8m, or 10m options to meet project-specific needs.
- 双模智能控制（Dual-Mode Intelligent Control）：支持有线+无线遥控，操作便捷，提升施工效率与安全性 Wired + wireless remote control for convenient operation, improving efficiency and safety.
- 多样化选型配置（Diverse Configuration Options）
- 4. 高耐磨管道选项 / High-Wear-Resistant Pipe Options
- 管道寿命可选（Pipe Lifespan Options）
- 普通直管/弯管：单层设计，使用寿命≤20,000m³，经济实惠 Standard pipes/bends: Single-layer design with a lifespan ≤20,000m³, cost-effective.
- 高耐磨双层管道：使用寿命≥50,000m³，适合高强度、长期工程需求 High-wear-resistant double-layer pipes: Lifespan ≥50,000m³, ideal for high-intensity and long-term projects.
- 管道寿命可选（Pipe Lifespan Options）
产品规格 Specification
| Model of Placing Boom | HGY36S-4R / HGY36P-4R |
|---|---|
| Max. Radius(m) | 36m |
| Free Standing Height,Slewing Rang | 22.7m, 400° |
| Working temperature(℃) | 0～60℃ |
| Counter weight(kg) | / |
| Total weight(kg) | 25000 |
| Supply power to equipment | 380V/50Hz |
| Electric motor: Motor Model | Y2-200L-4 |
| Electric motor: Power(kw) | 30 |
| Hydraulic system: System pressure(MPa) | 32 |
| Hydraulic system: Flow(L/min) | 34 / 47 |
| Hydraulic system: Oil tank capacity(L) | 280 |
| Control mode | (Cable+Radio) remote control |
| Clearing mode for concrete pipe | Water clear / Dry clear |
| Section of tubular column(m×m) | 0.75 × 0.75 |
| Arm(Booms): Boom model | fully hydraulic foldable arms |
| Arm(Booms): Delivery pipeline diameter | DN125mm |
| Arm(Booms): Length of end hose(〃×m） | 5〃×3 |
| Arm(Booms): Climbing Mode | Cylinder Jack Lifting |
| Arm(Booms): Internal Climbing Step Distance(m) | 0.52 |
| Arm(Booms): Floor Frame | Hole Prepared in Floor |
| Arm(Booms): Shaft Frame | Size of Climbing Shaft: 1.9m-2.7m |
| Min. Space Between Internal Climbing Frame: Climbing(m) | 3 |
| Min. Space Between Internal Climbing Frame: Placing Concrete(m) | 6 |
| Min. Space Between Internal Climbing Frame: Rest(m) | 6 |
* Download the complete specification sheet from the related documentation below *

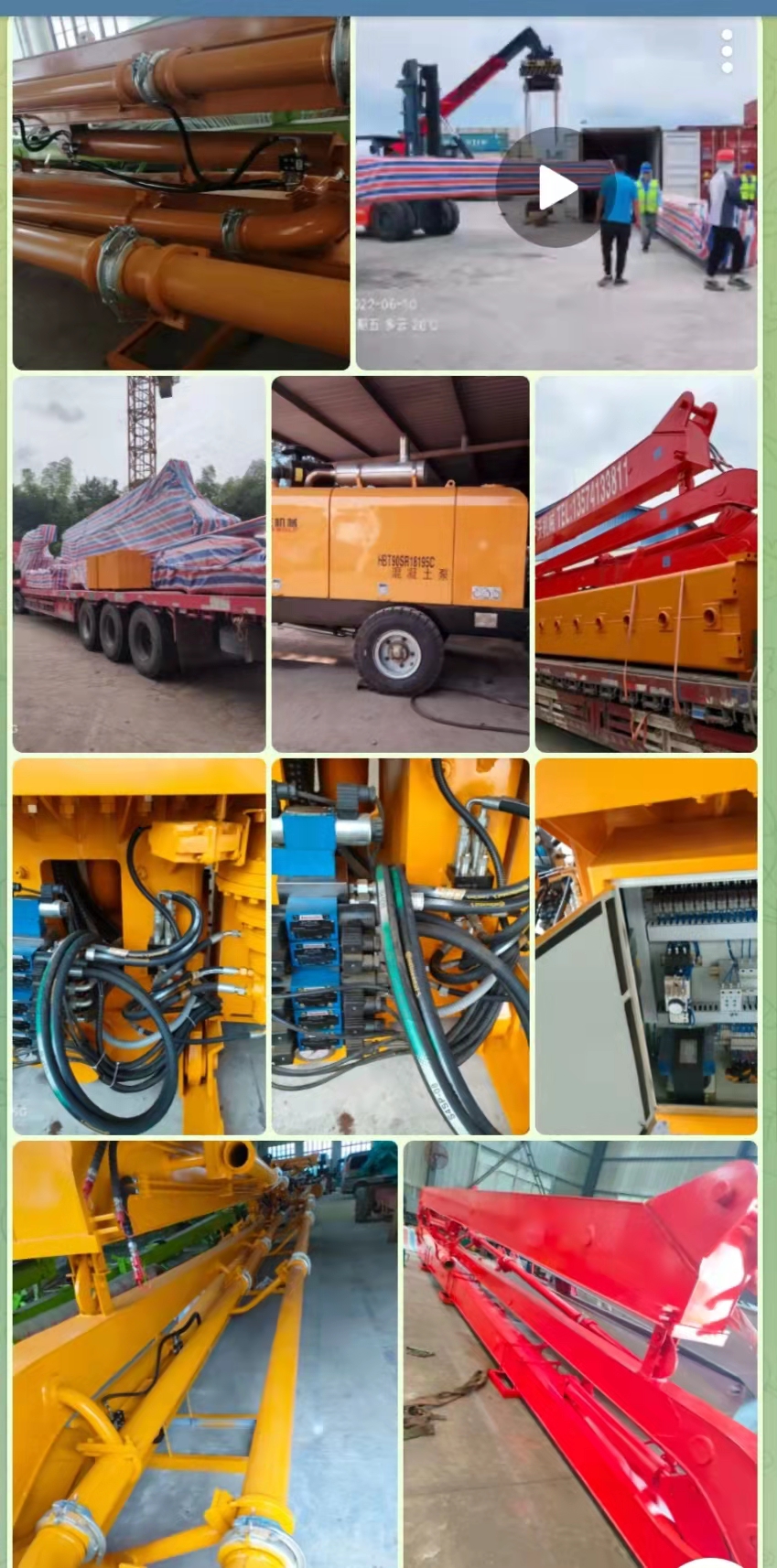

相关资料 Related documentation
- 实机视频 Real-time Working Video
- 产品参数 Parameters
- 安装图示 Installation
- 包装方式 Packaging

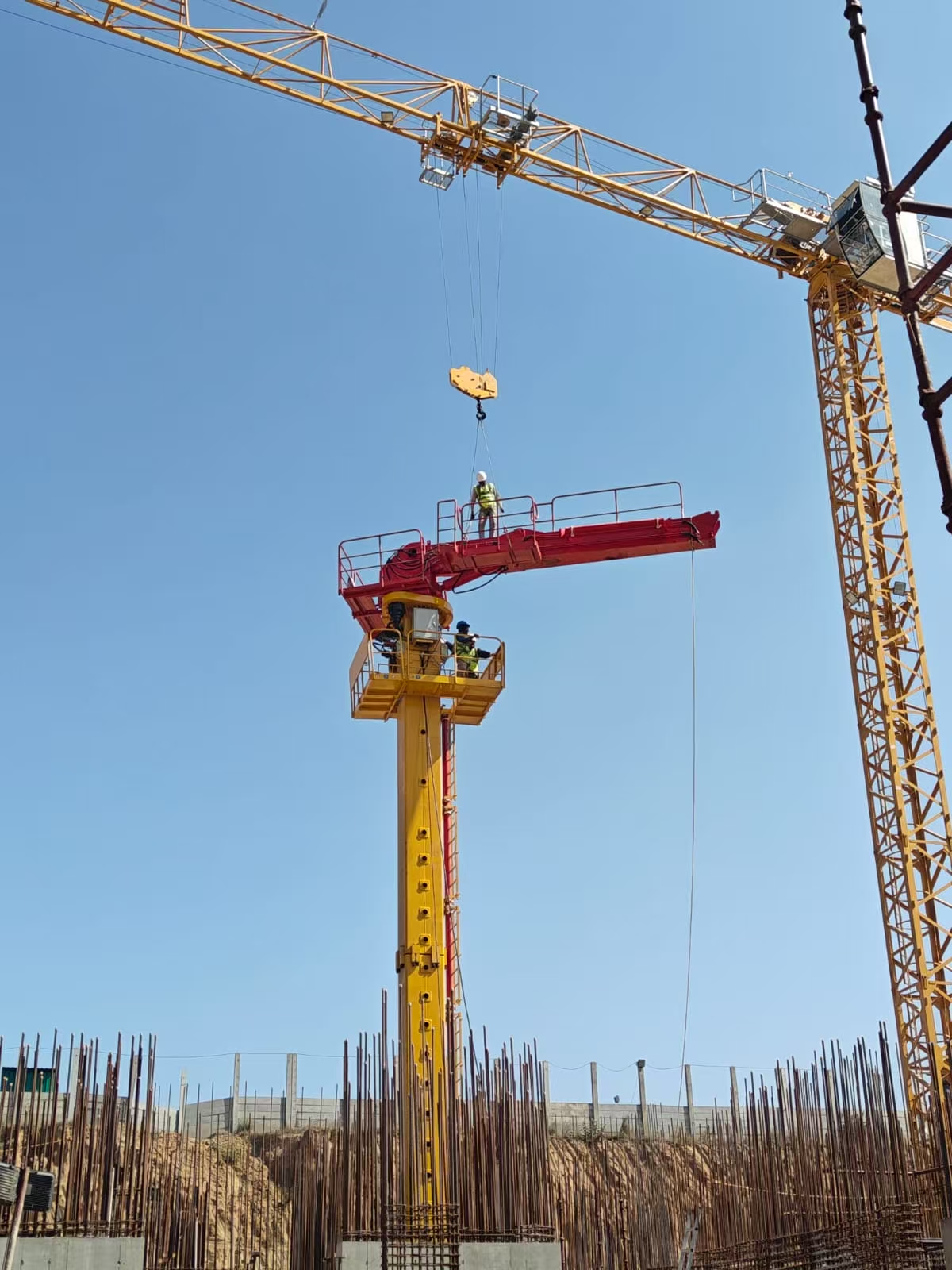

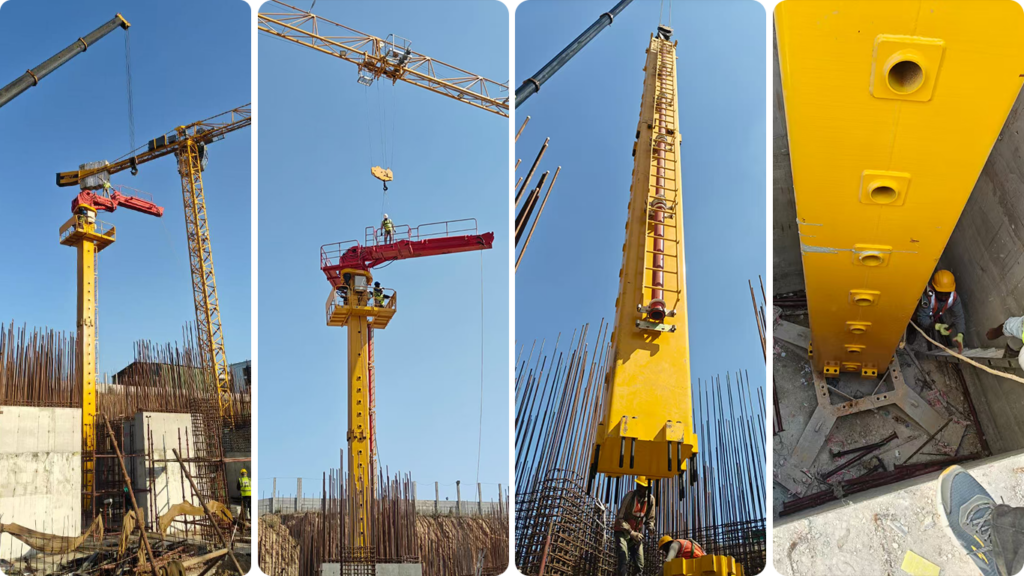

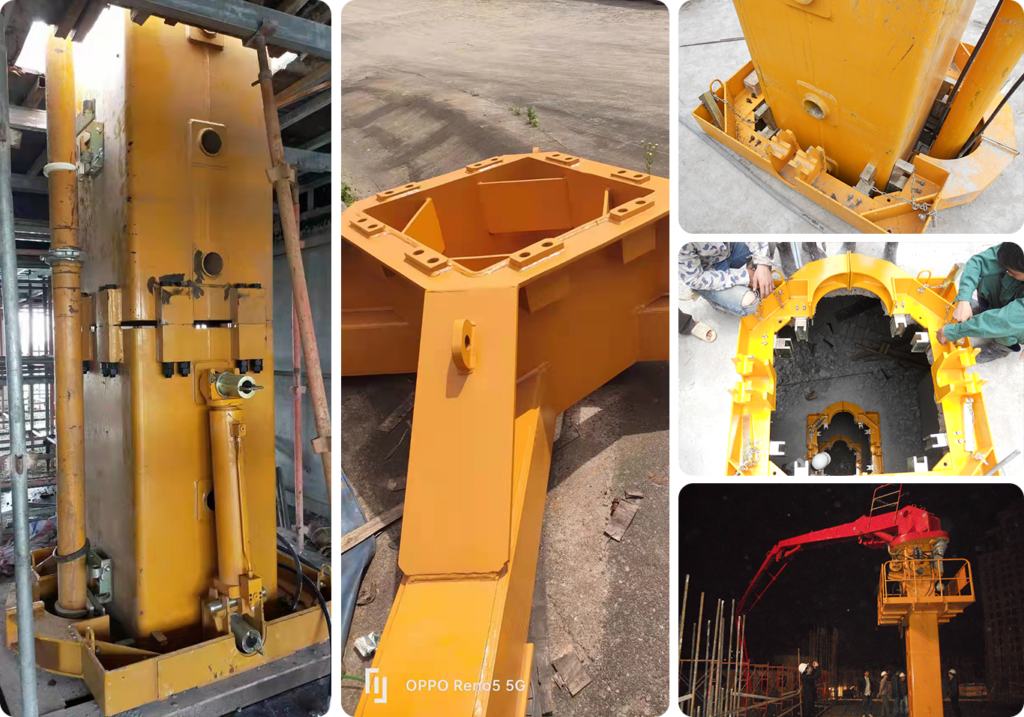

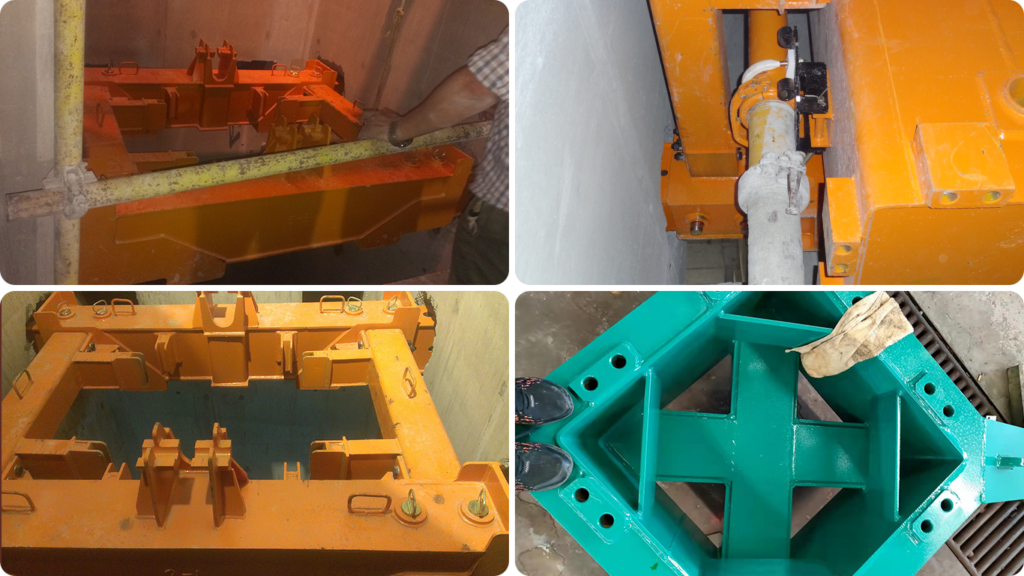

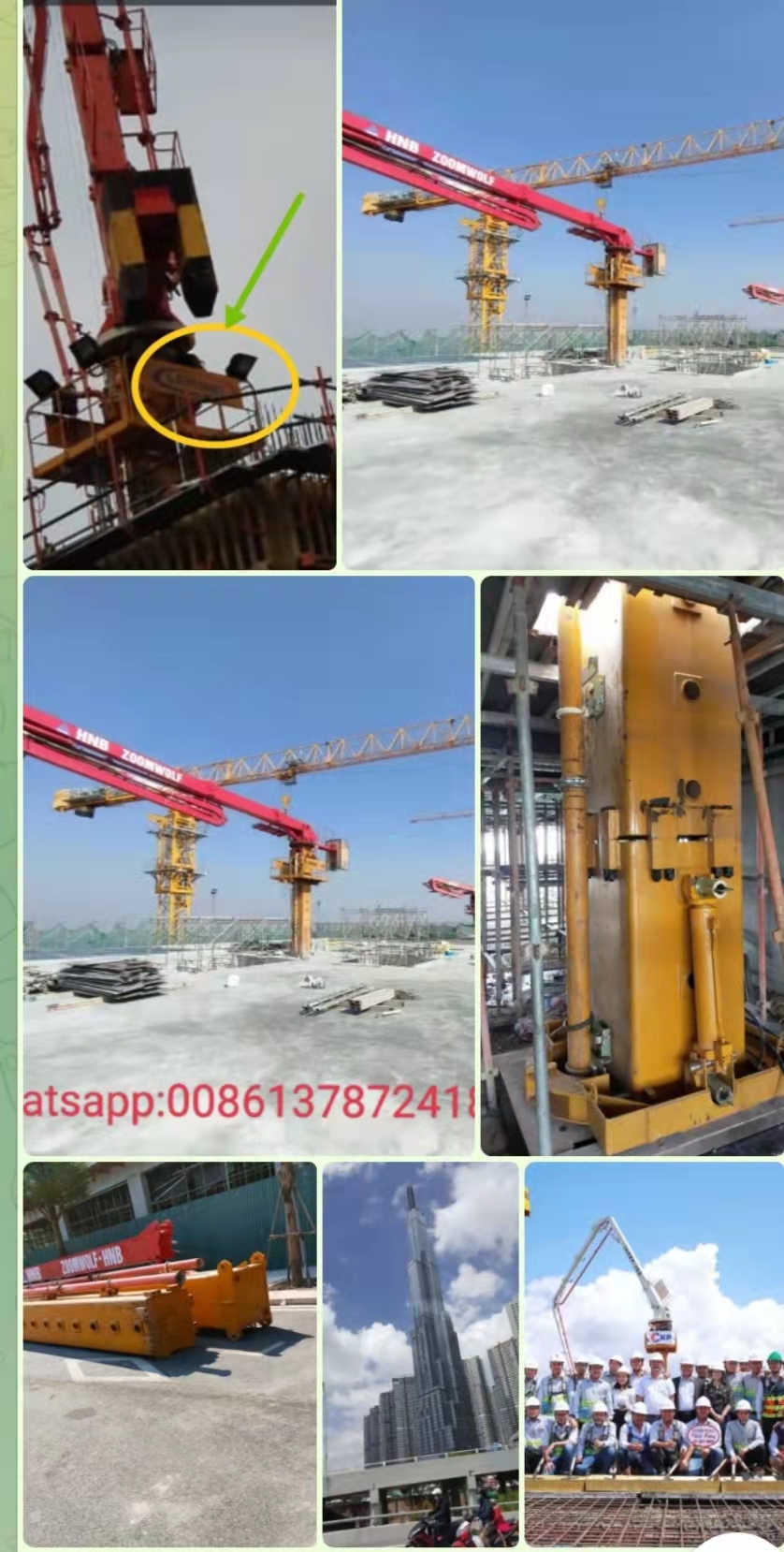

安装图示 Installation

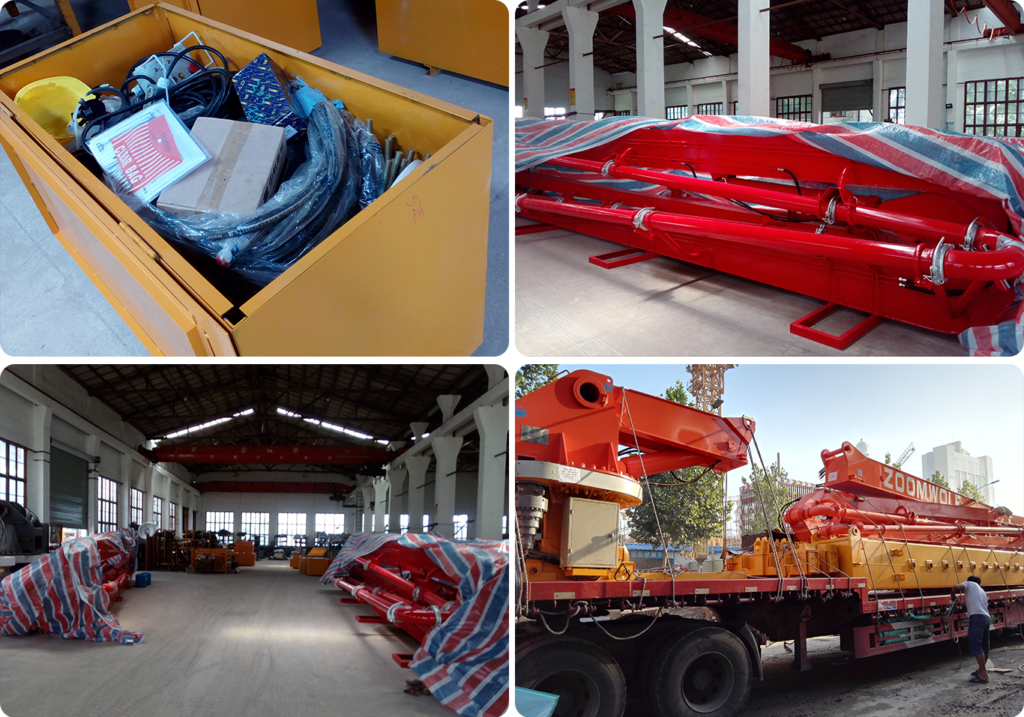

包装方式 Packaging
