“科技——赋予人类超级视觉”
“Technology, giving humans super vision”
光子真彩摄像头
Photon True Color Camera
超清夜视，细节尽现，AI智能，安防无忧Ultra-clear night vision, full details, AI intelligence, worry-free security
光子真彩摄像头可以为您带来极致清晰的超清夜视，让黑夜如白昼般呈现每个细节。摄像头搭载AI智能技术，自动识别危险情况并保障您的安全，真正实现全天候安防无忧。无论是家庭还是企业，它都能为您提供无懈可击的守护，是您的未来超级视觉。
The Photon True Color Camera can bring you extremely clear ultra-clear night vision, making the night as bright as day to present every detail. The camera is equipped with AI intelligent technology, which can automatically identify dangerous situations and ensure your safety, truly achieving all-weather security without worries. Whether it is a home or a business, it can provide you with impeccable protection and is your future super vision.
4 million full-color, fully structured zoom cylindrical network camera
Dual 4 megapixel 41x zoom photon-level true color dual-camera ball network camera
Photon-level true color night vision imaging module
产品概述 Product Overview
- 产品亮点 Features
- 使用场景 Application
- 参数列表 Parameters
400万全彩全结构化变焦筒型网络摄像机 4 million full-color, fully structured zoom cylindrical network camera
产品亮点 Features
- 采用1/1.8英寸400万大靶面CMOS图像传感器，全彩监控效果突出 Adopting 1/1.8-inch 4-megapixel large-area CMOS image sensor, the full-color monitoring effect is outstanding
- 4倍光学变焦，安装更灵活，目标细节更清晰 4x optical zoom, more flexible installation, clearer target details
- 支持3种深度智能功能：混行检测-全结构化模式（默认开启）、人脸检测、周界布防 Supports 3 deep intelligent functions: mixed traffic detection-full structured mode (default on), face detection, perimeter defense
- 自适应强光抑制：夜晚摄像机能根据道路上是否有运动车辆自动调节画面亮度 Adaptive strong light suppression: the camera can automatically adjust the picture brightness at night according to whether there are moving vehicles on the road
- 自适应透雾：摄像机能根据雾霾严重程度，自适应调节透雾等级 Adaptive fog penetration: the camera can adaptively adjust the fog penetration level according to the severity of haze
- 区域增强(ROI)功能，提高低带宽网络环境下重点区域图像质量 Regional enhancement (ROI) function to improve the image quality of key areas in low-bandwidth network environments
- 120dB光学宽动态，轻松应对高明暗对比度场景…… 120dB optical wide dynamic, easily cope with high light and dark contrast scenes…
使用场景 Application

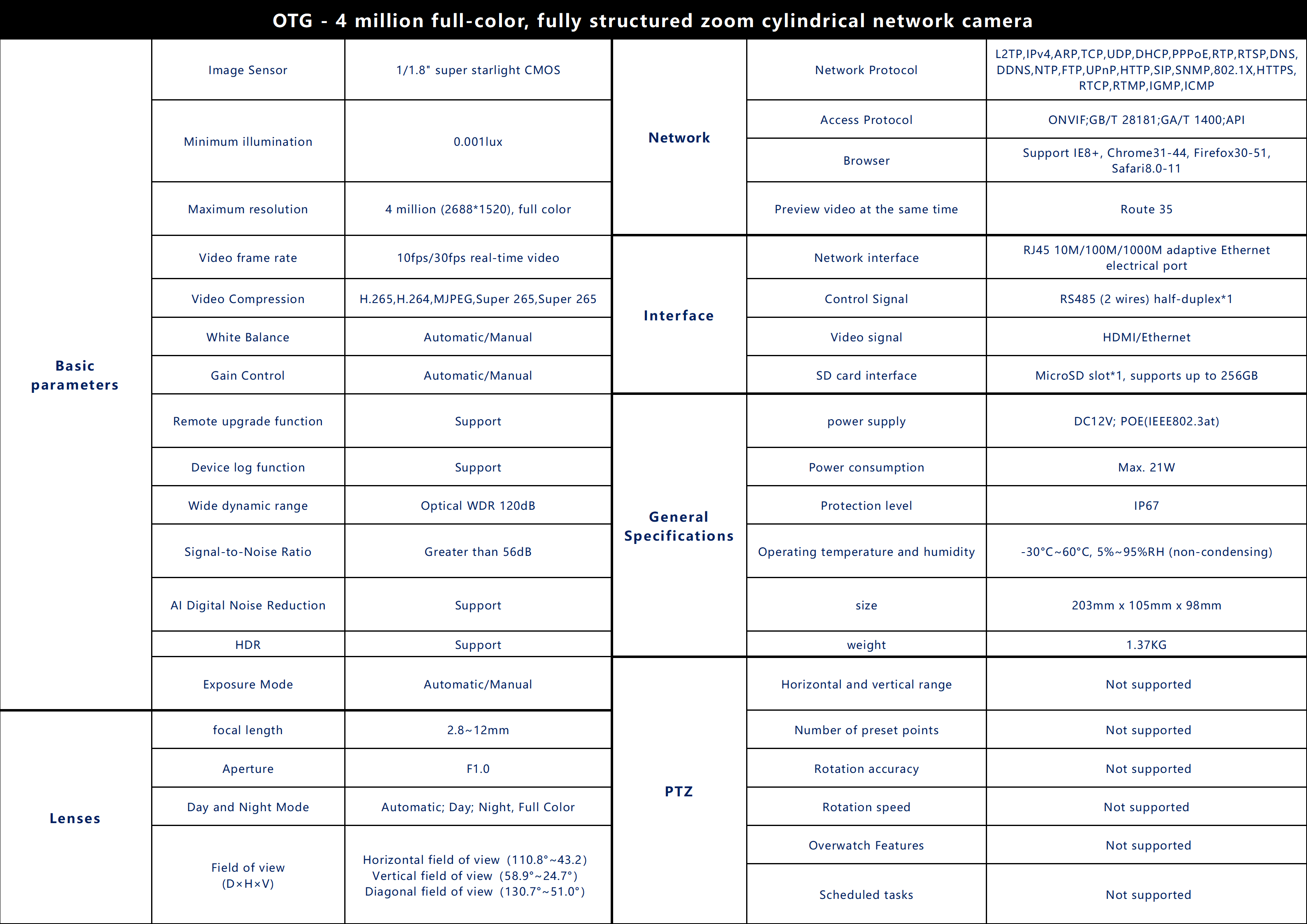

参数列表 Parameters
产品概述 Product Overview
- 产品亮点 Features
- 使用场景 Application
- 参数列表 Parameters

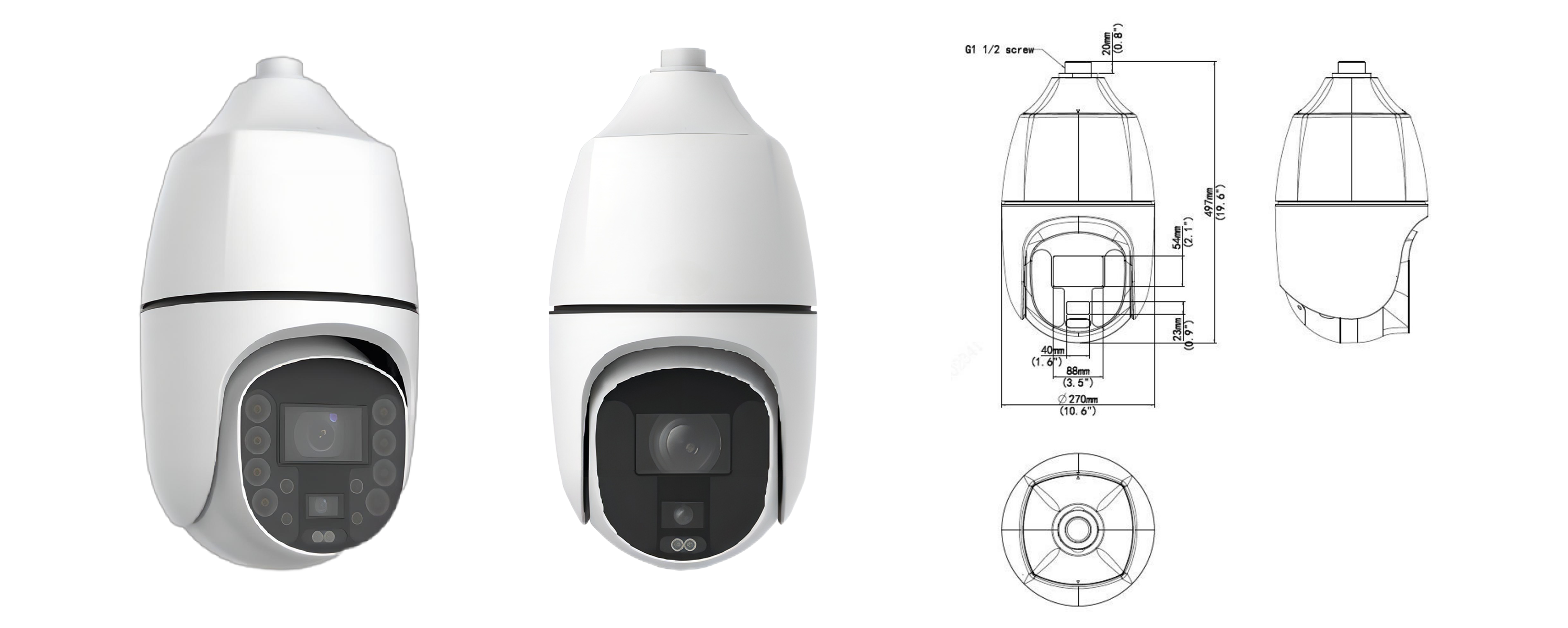

双400万像素41倍变焦光子级真彩双摄球型网络摄像机 Dual 4 megapixel 41x zoom photon-level true color dual-camera ball network camera
产品亮点 Features
- 全景+细节双镜头设计，双镜头同向随动 Panorama + detail dual-lens design, dual-lens moving in the same direction
- 全景镜头：方形视窗设计，95°超大水平视场角 Panoramic lens: square window design, 95° ultra-large horizontal field of view
- 细节镜头：方形视窗设计，25/41高变倍率 Detailed lens: square window design, 25/41 high zoom ratio
- 全彩夜视：1/1.2大靶面（8MP）+光圈F1.0 Full-color night vision: 1/1.2 large image area (8MP) + aperture F1.0

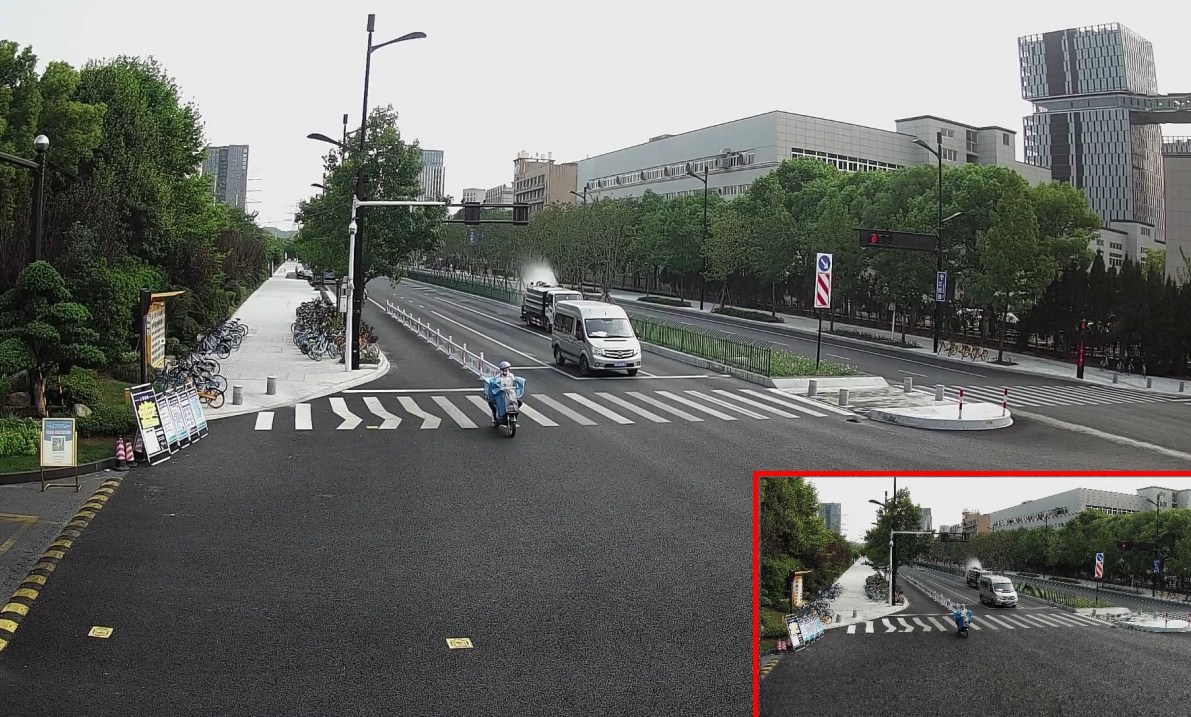

- 倍率拼接：支持单路/双路两种视频输出模式，单路视频输出具备全景的大视场角和细节的高变倍率 Magnification splicing: supports single-channel/dual-channel video output modes. Single-channel video output has a panoramic large field of view and a high zoom ratio for details

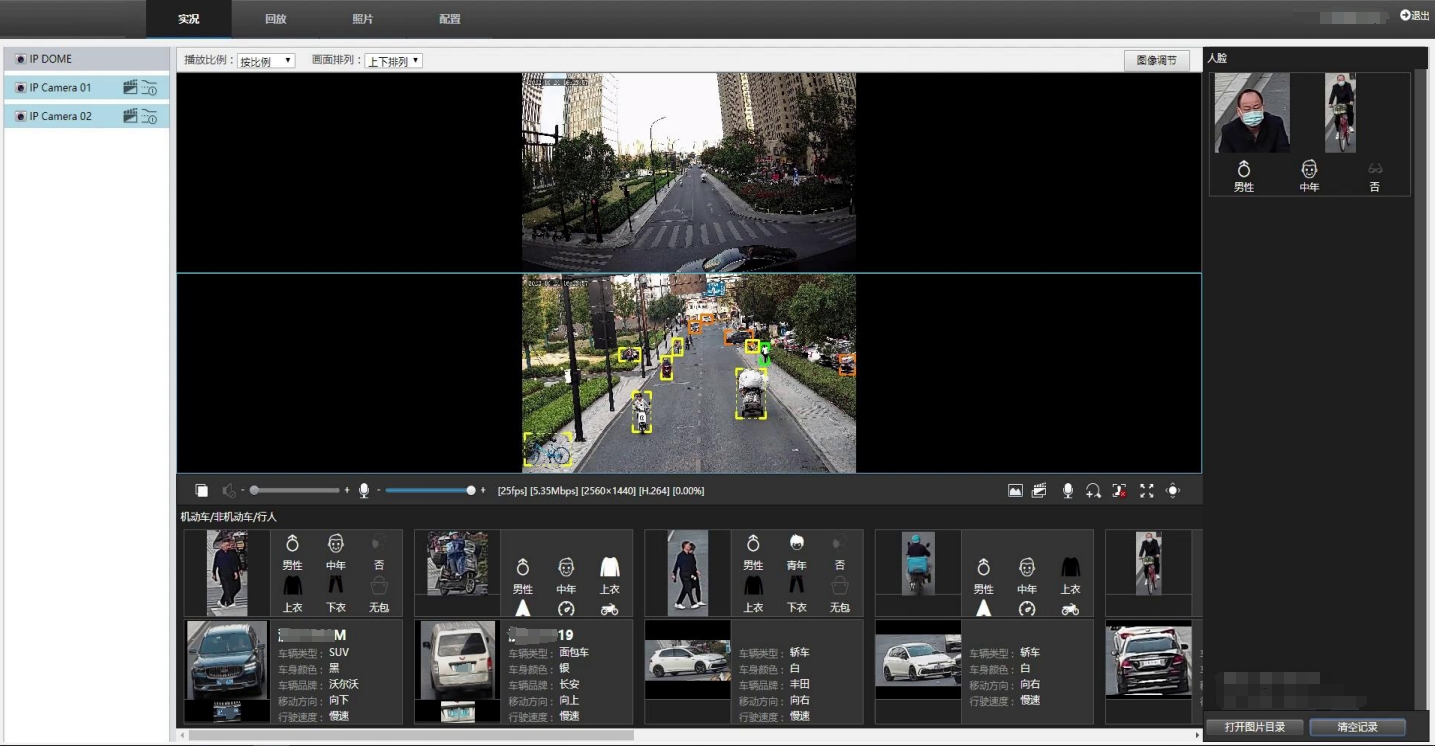

- AI智能：120个目标并发检测，混行检测全结构化，深度周界，人数统计，自动跟踪 AI intelligence: 120 targets concurrent detection, mixed traffic detection, full structured detection, deep perimeter, people counting, automatic tracking
- 暖光补光灯（备用）：2颗暖光灯，补光距离可达30米，全彩夜视无需补光 Warm light fill light (spare): 2 warm light lights, fill light distance up to 30 meters, full-color night vision without fill light
- 红外补光灯（备用）：12颗红外灯，补光距离可达250米，全彩夜视无需补光 Infrared fill light (spare): 12 infrared lights, fill light distance up to 250 meters, full-color night vision without fill light

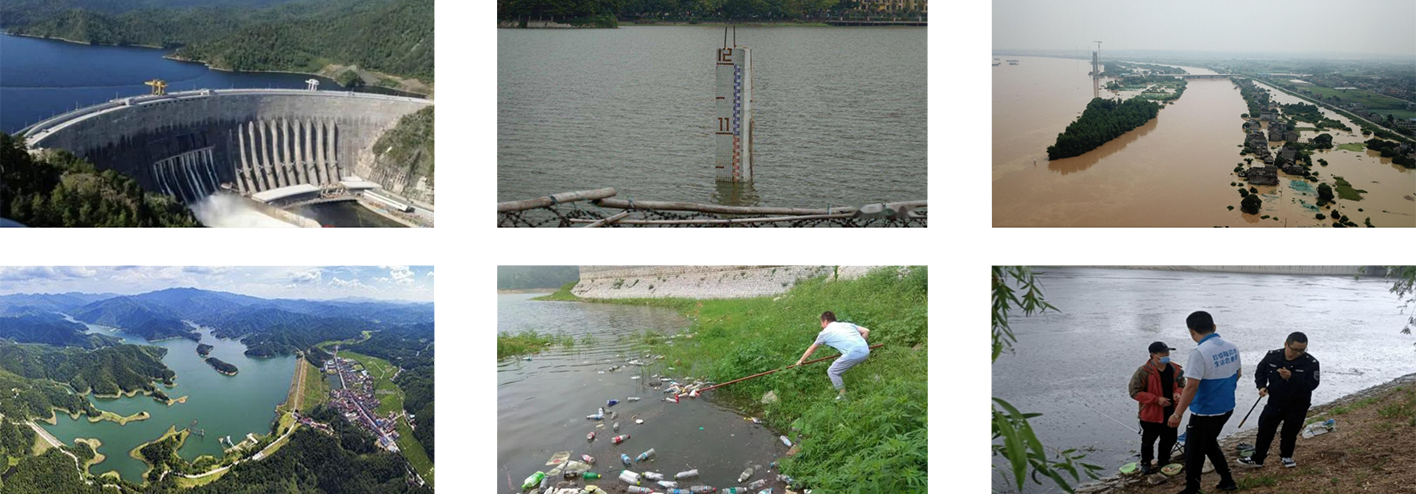

使用场景 Application

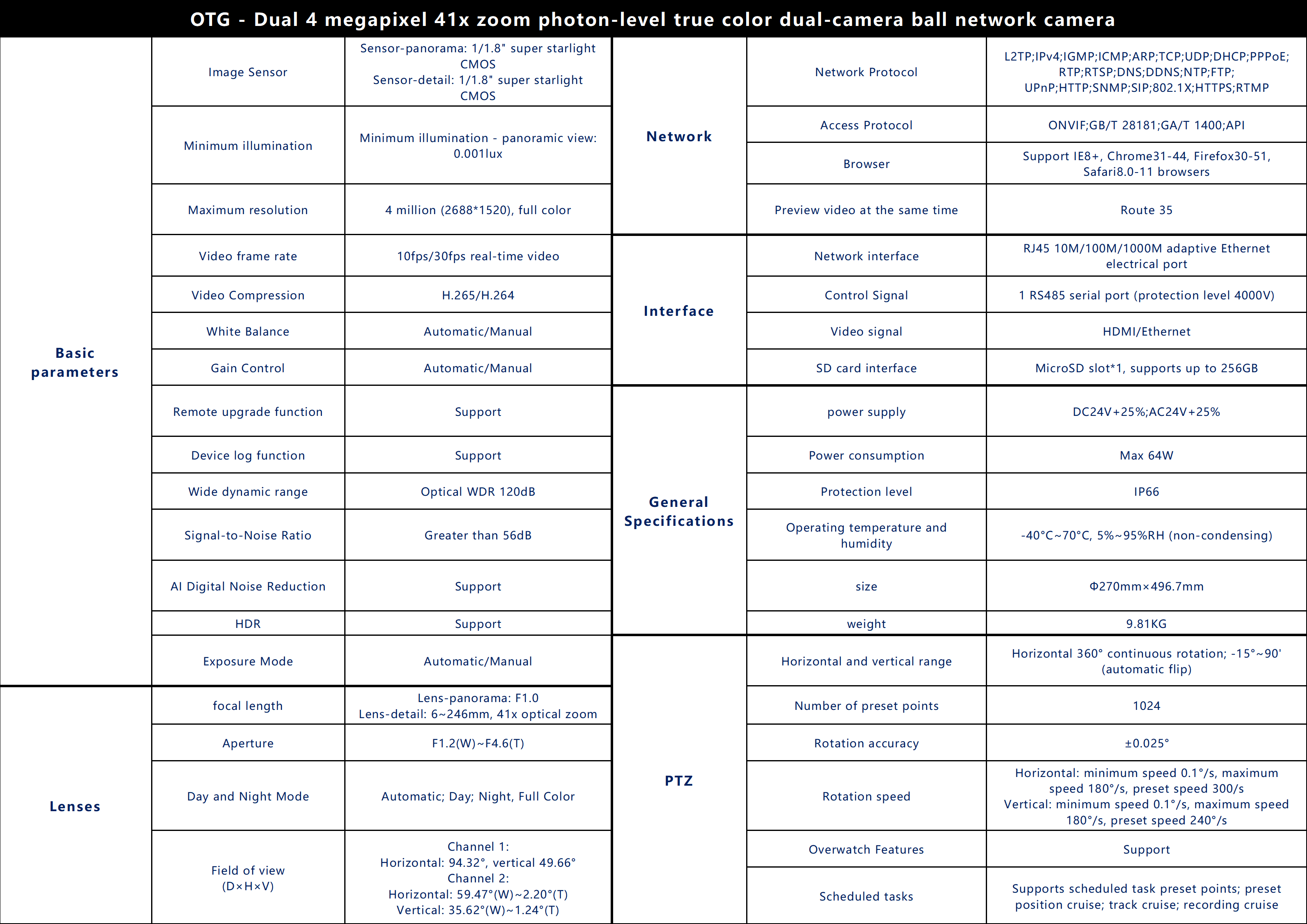

参数列表 Parameters
产品概述 Product Overview
- 产品亮点 Features
- 使用场景 Application
- 参数列表 Parameters

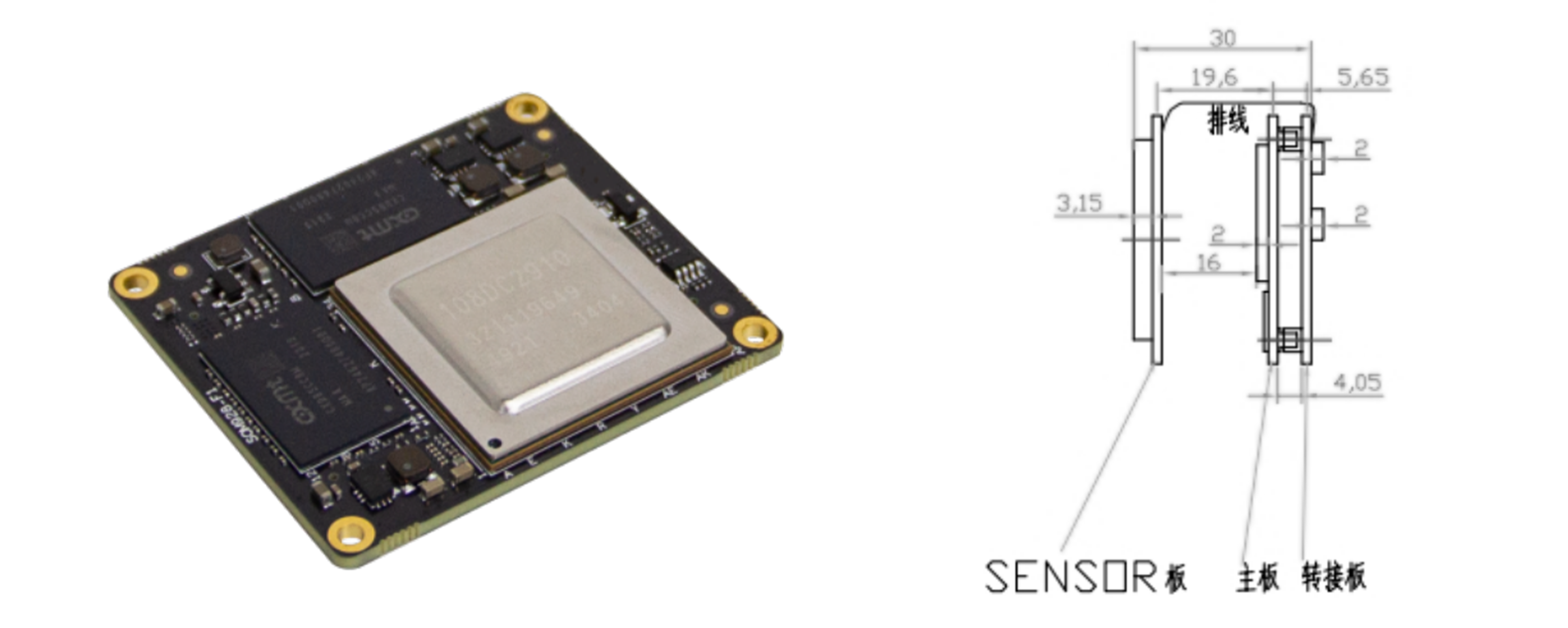

光子级真彩夜视成像模组 Photon-level true color night vision imaging module
产品亮点 Features
- 低功耗神经网络模型：评估各个卷积核对输出效果的影响力，并进行量化裁剪；模型体积降为常规的百分之五以下，具有更快速度、更低延迟和更低功耗（系统功耗≤3W，低照度时延<50ms）Low-power neural network model: evaluates the influence of each convolution kernel on the output effect and performs quantitative trimming; the model size is reduced to less than 5% of the conventional one, with faster speed, lower latency and lower power consumption (system power consumption ≤3W, low illumination delay <50ms)
- 超低照度视频降噪：降噪深度卷积神经网络，精确评估噪声分布并提取信号；精确预测物体运动，实现运动场景的极弱光成像（可适应最低光照强度<0.001Lux） Low-light video noise reduction: Denoising deep convolutional neural network, accurately evaluates noise distribution and extracts signals; accurately predicts object motion and achieves extremely low-light imaging of moving scenes (can adapt to the minimum light intensity <0.001Lux)
- 高动态的视频图像：精确计算各个像素点权重；半监督+无监督学习，不同曝光时长的帧快速曝光融合；实现优秀的过曝抑制（400万+图像分辨率，超宽动态，高于业界30dB） High-dynamic video images: Accurately calculate the weight of each pixel; semi-supervised + unsupervised learning, fast exposure fusion of frames with different exposure times; achieve excellent overexposure suppression (4 million + image resolution, ultra-wide dynamic, 30dB higher than the industry)
- 高质量的图像重建：针对传统图像数据的问题，进行细化重拆解；定制深度神经网络模型，通过大量的数据学习和算法优化图像重建（夜晚复杂光照条件下效果提升100%） High-quality image reconstruction: Refine and re-analyze the problems of traditional image data; customize deep neural network models, and optimize image reconstruction through large amounts of data learning and algorithms (the effect is improved by 100% under complex lighting conditions at night)
- 各类硬件有效兼容：从前期设计到最终集成整合，均调试兼容各类硬件(尤其中国生产的硬件)；降低硬件迁移成本，同时确保供应链安全（硬件高匹配度，关键部件至少兼容两家以上的供应商） Effective compatibility of various hardware: From early design to final integration, all hardware (especially hardware produced in China) are debugged and compatible; reduce hardware migration costs while ensuring supply chain security (hardware has high matching degree, key components are compatible with at least two suppliers)
使用场景 Application

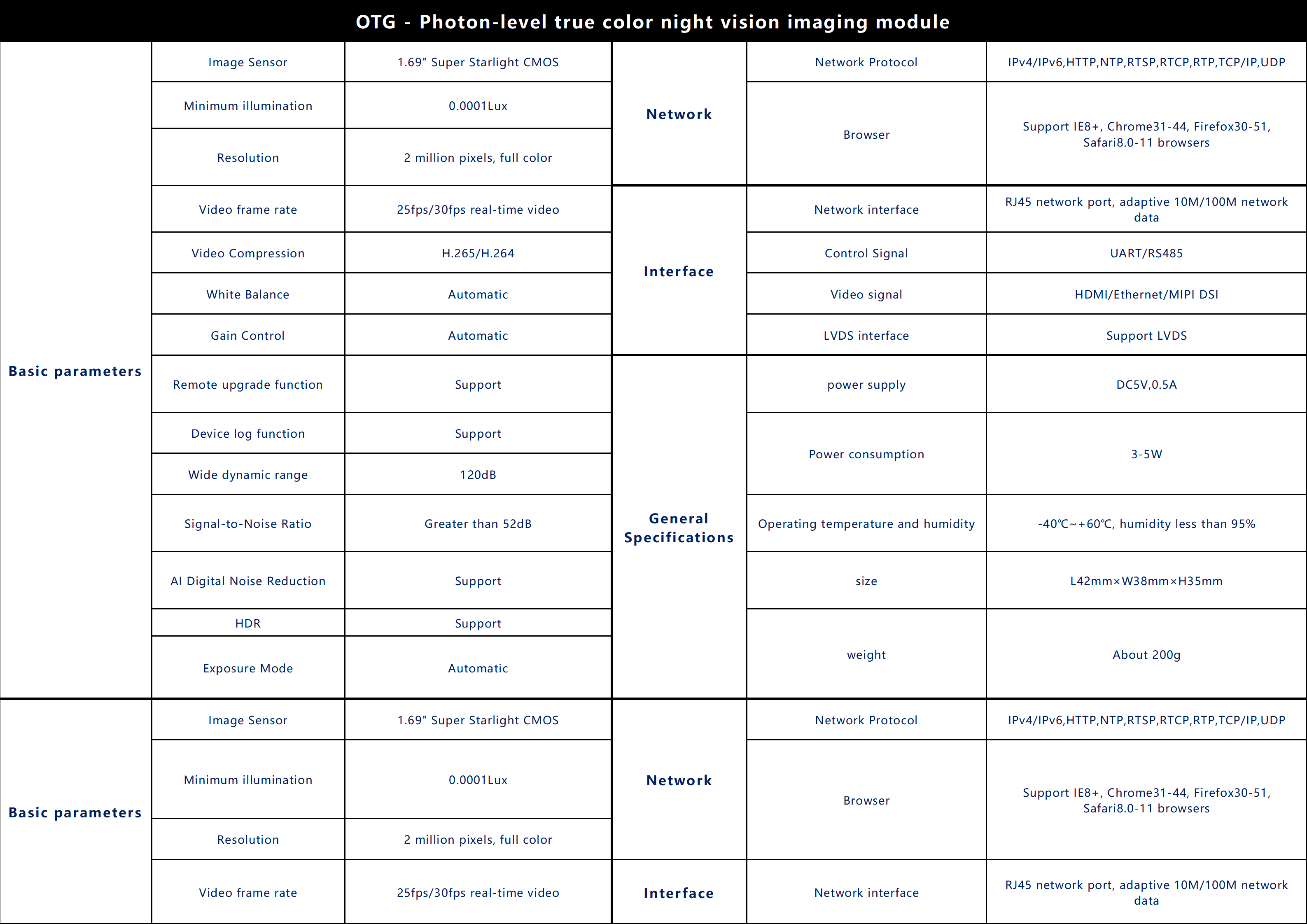

参数列表 Parameters
