“智慧储能，让您的生活更美好”
“Smart energy storage, makes your life better”
储能柜系列
Energy storage cabinet series
为您打造的家庭与工商业储能理想方案 Ideal energy storage solutions for your home and commercial use
储能柜系列集合了安全可靠、长寿命、高集成度与智能管理的优势。无论是家庭、工商业还是工业应用，我们的储能柜都提供卓越的兼容性和环境适应性。配备先进的iBMS系统、云端安全预警、智能温度管理及SOC矫正算法，为各类需求提供高效、灵活且经济的储能解决方案。储能柜系列，您的智慧储能之选。
The energy storage cabinet series combines the advantages of safety, reliability, long life, high integration and intelligent management. Whether it is home, commercial or industrial application, our energy storage cabinets provide excellent compatibility and environmental adaptability. Equipped with advanced iBMS system, cloud security warning, intelligent temperature management and SOC correction algorithm, it provides efficient, flexible and economical energy storage solutions for various needs. Energy storage cabinet series, your choice of smart energy storage.
产品概述 Product Overview
- 产品亮点 Features
- 参数列表 Parameters

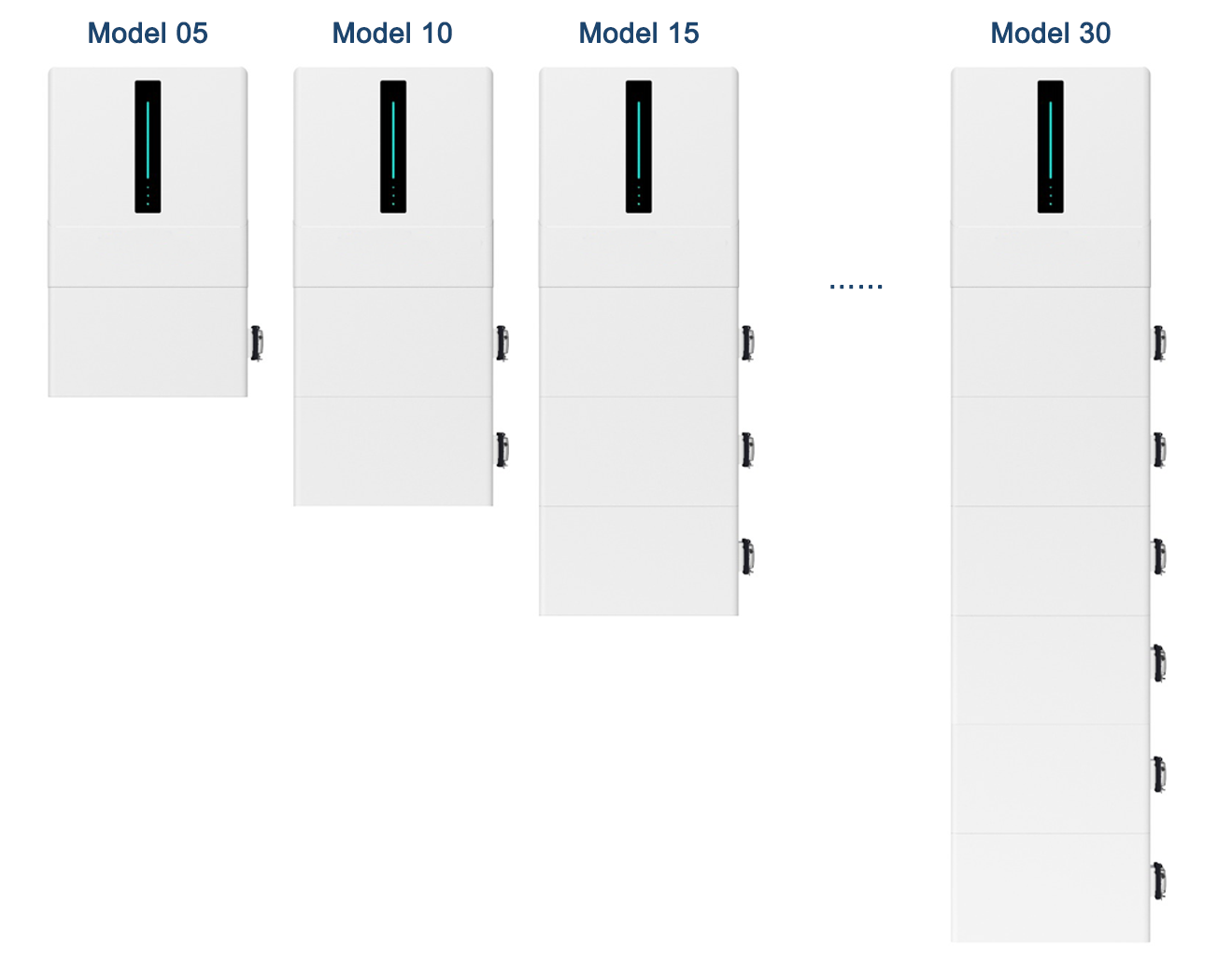

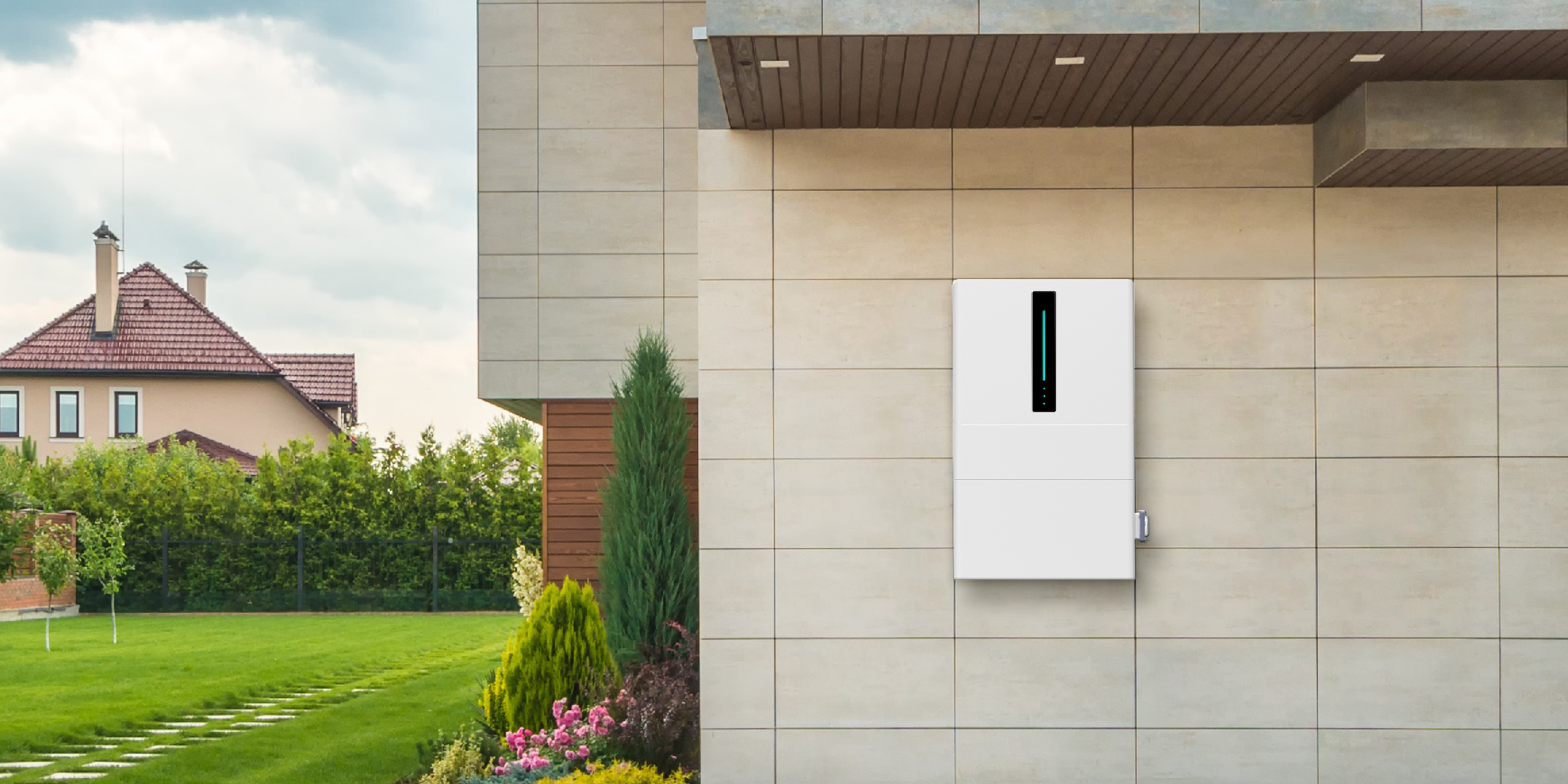

户用储能柜 Residential energy storage cabinet (5~30kWh, 1~6 Batteries)
产品亮点 Features
- 安全可靠：LiFePO4方壳电芯，多重硬件级防护 Safe and reliable: LiFePO4 square shell battery, multiple hardware-level protection
- 长使用寿命：充放电寿命超过6000次循环，系统使用寿命超15年 Long service life: charge and discharge life exceeds 6000 cycles, system service life exceeds 15 years
- 完美兼容性：兼容单相 / 三相逆变器，支持 CAN / RS485通讯协议 Perfect compatibility: compatible with single-phase / three-phase inverters, support CAN / RS485 communication protocol
- iBMS：丰富硬件自诊断电路和关键回路冗余设计 iBMS: rich hardware self-diagnosis circuit and key loop redundancy design
- 易于安装：壁挂式设计，节省占地面积空间 Easy to install: wall-mounted design, saving floor space
- 扩展灵活：模块化设计，最大30kWh，可支持1-6个电池并联 Flexible expansion: modular design, maximum 30kWh, can support 1-6 batteries in parallel
- 环境适应性强：温度适应范围：-10℃～55℃，IP65防护 Strong environmental adaptability: temperature adaptation range: -10℃～55℃, IP65 protection

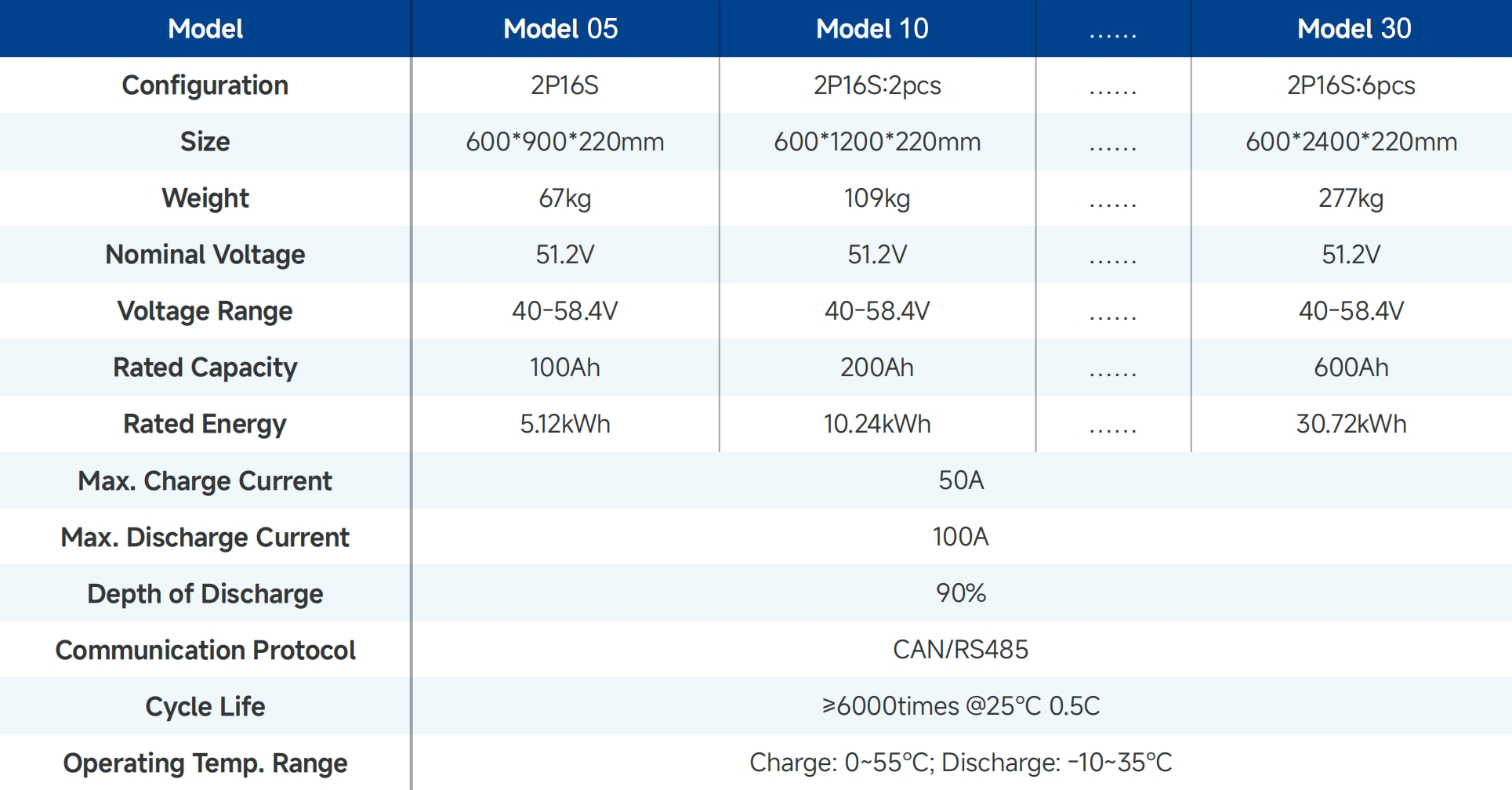

参数列表 Parameters
产品概述 Product Overview
- 产品亮点 Features
- 参数列表 Parameters

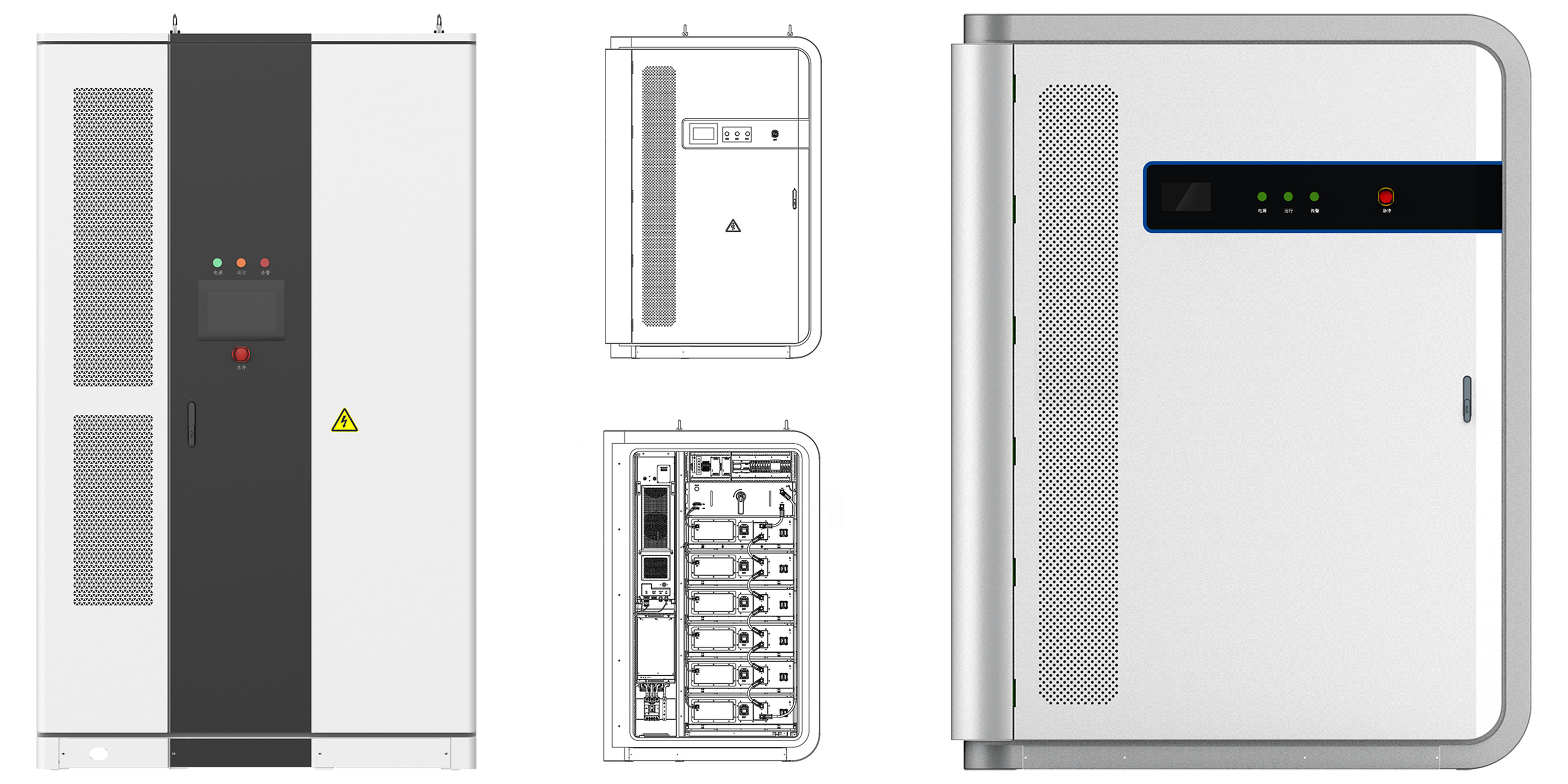

工商业储能柜 Industrial and commercial energy storage cabinet (96/144/192/258/289/385kWh)
产品亮点 Features
- 高集成度：集成式设计，即插即用，安装方便 High integration: integrated design, plug and play, easy installation
- 高效灵活：模块化设计，支持并机使用；适用于各种场景，灵活负载配置 Efficient and flexible: modular design, supports parallel use; suitable for various scenarios, flexible load configuration
- iBMS：全新iBMS实现精细化和个性化电池全生命周期安全管理 iBMS: the new iBMS realizes refined and personalized battery life cycle safety management
- 云端安全预警：全维度安全预警功能，7*24小时保证电池使用安全 Cloud security warning: full-dimensional safety warning function, 7*24 hours to ensure battery safety
- 安全可靠：IP54 防护等级；电气安全、系统安全、电化学安全、机械安全及其他安全试验 Safe and reliable: IP54 protection level; electrical safety, system safety, electrochemical safety, mechanical safety and other safety test
- 智能友好：手机App监控产品运行状态和实时收入数据 Smart and friendly: mobile phone App monitors product operation status and real-time income data
- SOC校正算法：未完全放电场景中大大提高SOC精度至3%；Sop校正算法延长电池寿命15% SOC correction algorithm: greatly improves SOC accuracy to 3% in incomplete discharge scenarios; Sop correction algorithm extends battery life by 15%
- 温度管理：全场景热模拟分析，适用于复杂环境 Temperature management: full-scenario thermal simulation analysis, suitable for complex environments

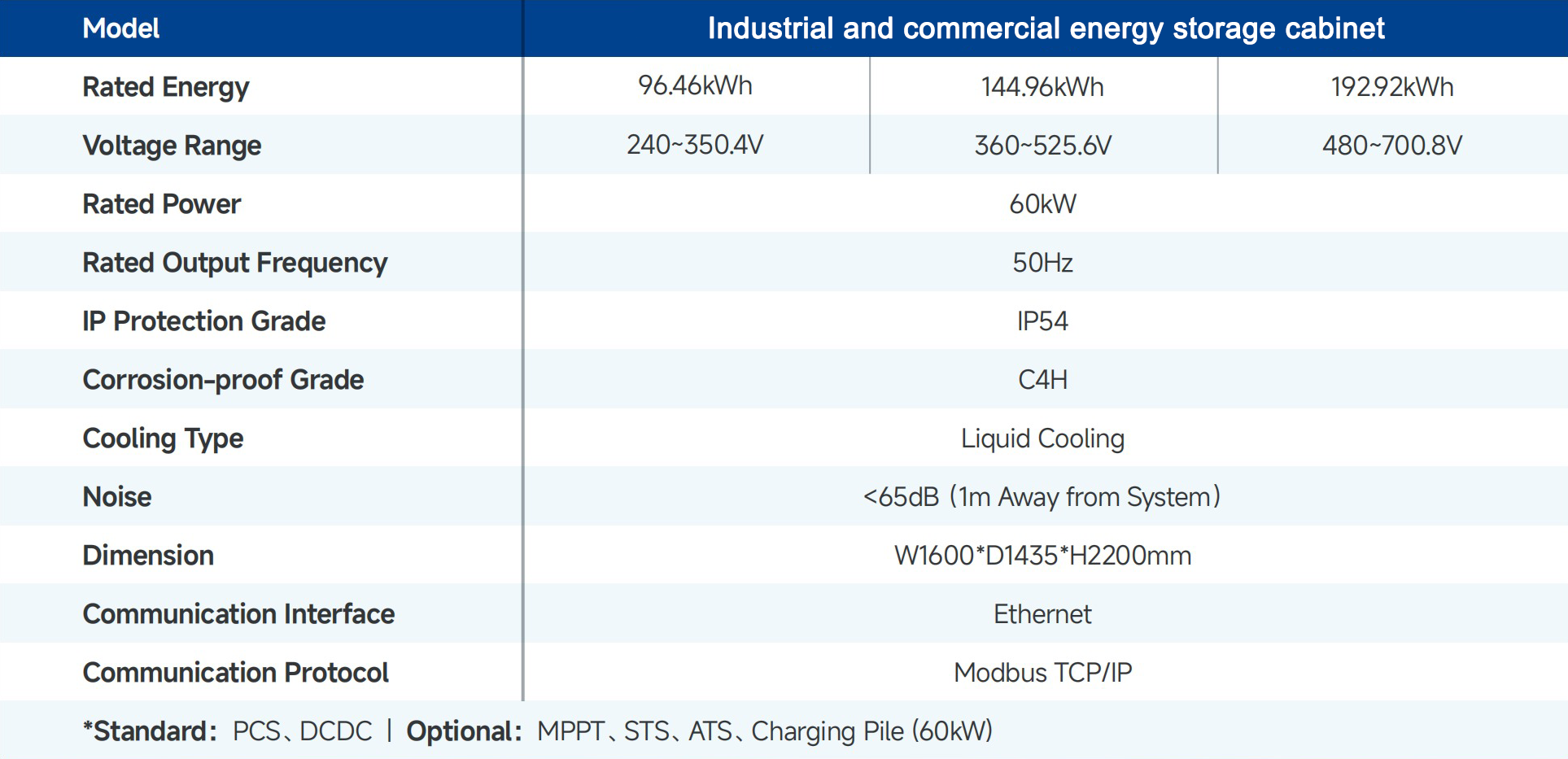

参数列表 Parameters
产品概述 Product Overview
- 产品亮点 Features
- 参数列表 Parameters

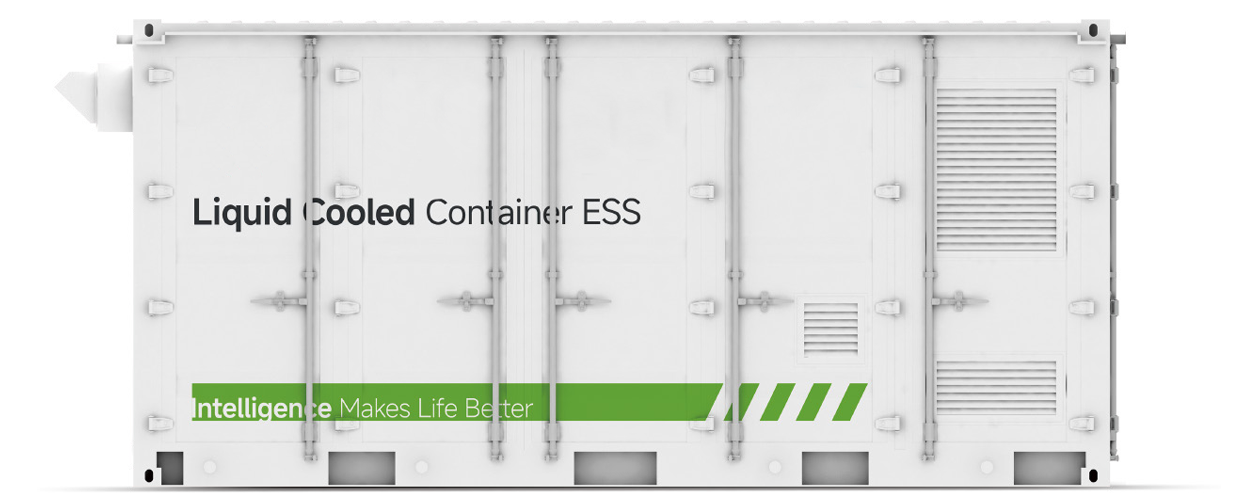

工业储能集装箱 Industrial energy storage container (3.44/3.85/5MWh)
产品亮点 Features
- 降本：集成式储能系统，便于安装，操作和维护；大模块设计，强于传统能源解决方案50% Cost reduction: integrated energy storage system, easy to install, operate and maintain; large module design, 50% better than traditional energy solutions
- 增效：基于1500V平台设计，直流侧效率可达93% Efficiency improvement: based on 1500V platform design, DC side efficiency can reach 93%
- 安全：多重平衡措施，确保电池寿命周期一致；集成气水灭火装置，确保极端情况下的系统安全 Safety: multiple balancing measures to ensure consistent battery life cycle; integrated gas and water fire extinguishing device to ensure system safety in extreme situations
- 智能：多维度电池状态分析，实现系统故障的快速分析定位； 无人值守云端实时监控 Intelligence: multi-dimensional battery status analysis to achieve rapid analysis and location of system faults; unattended cloud real-time monitoring

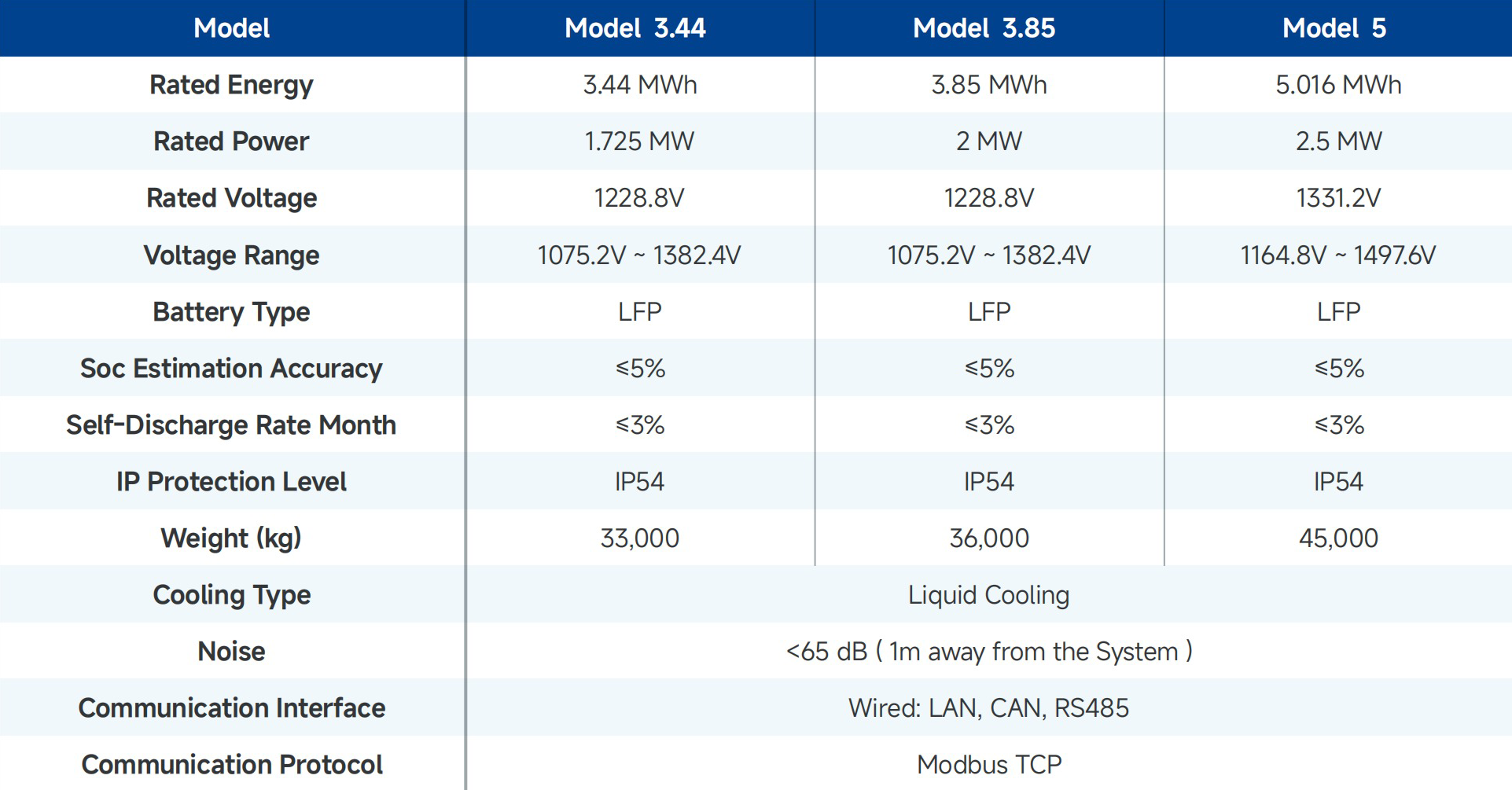

参数列表 Parameters

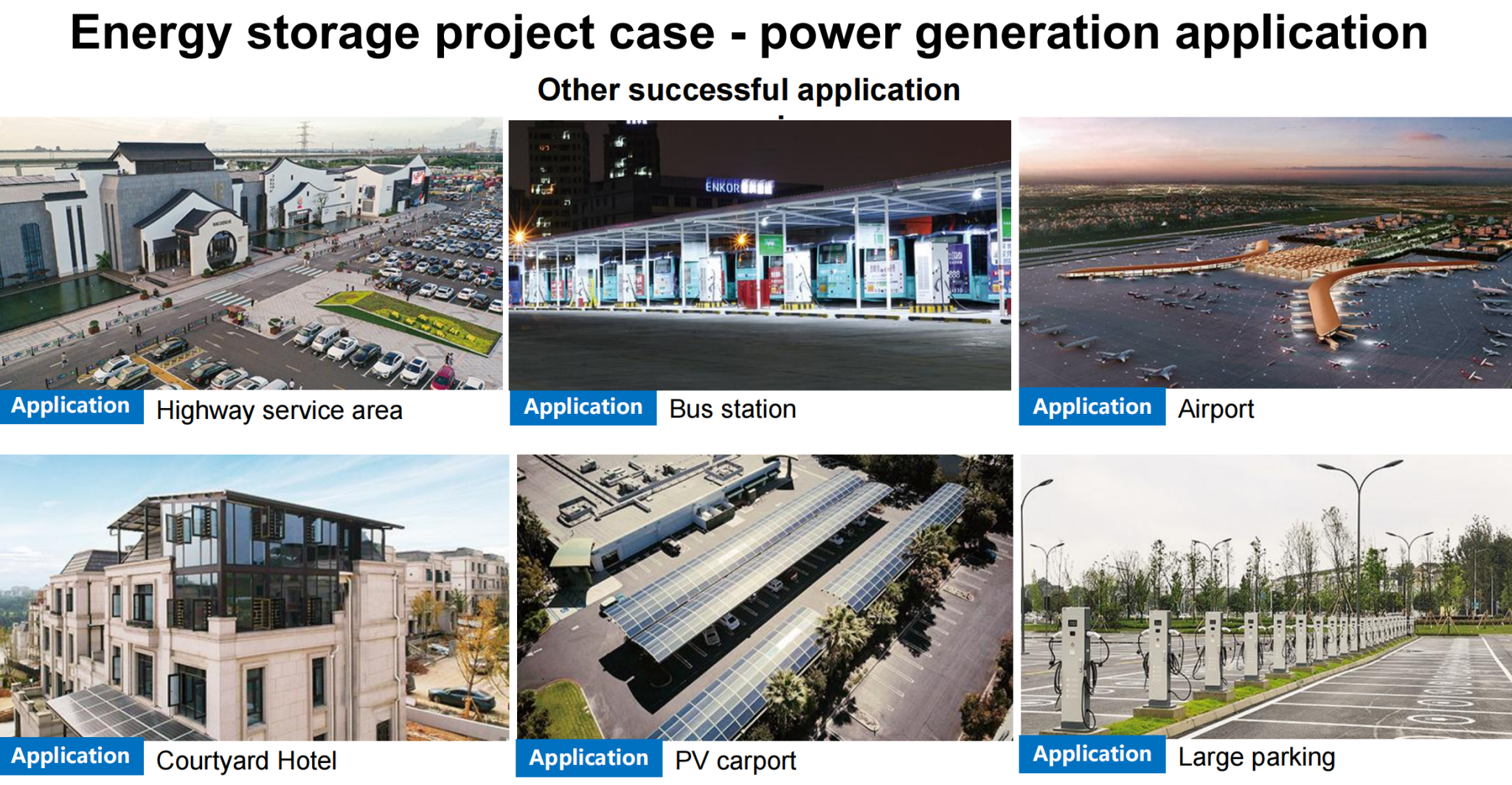

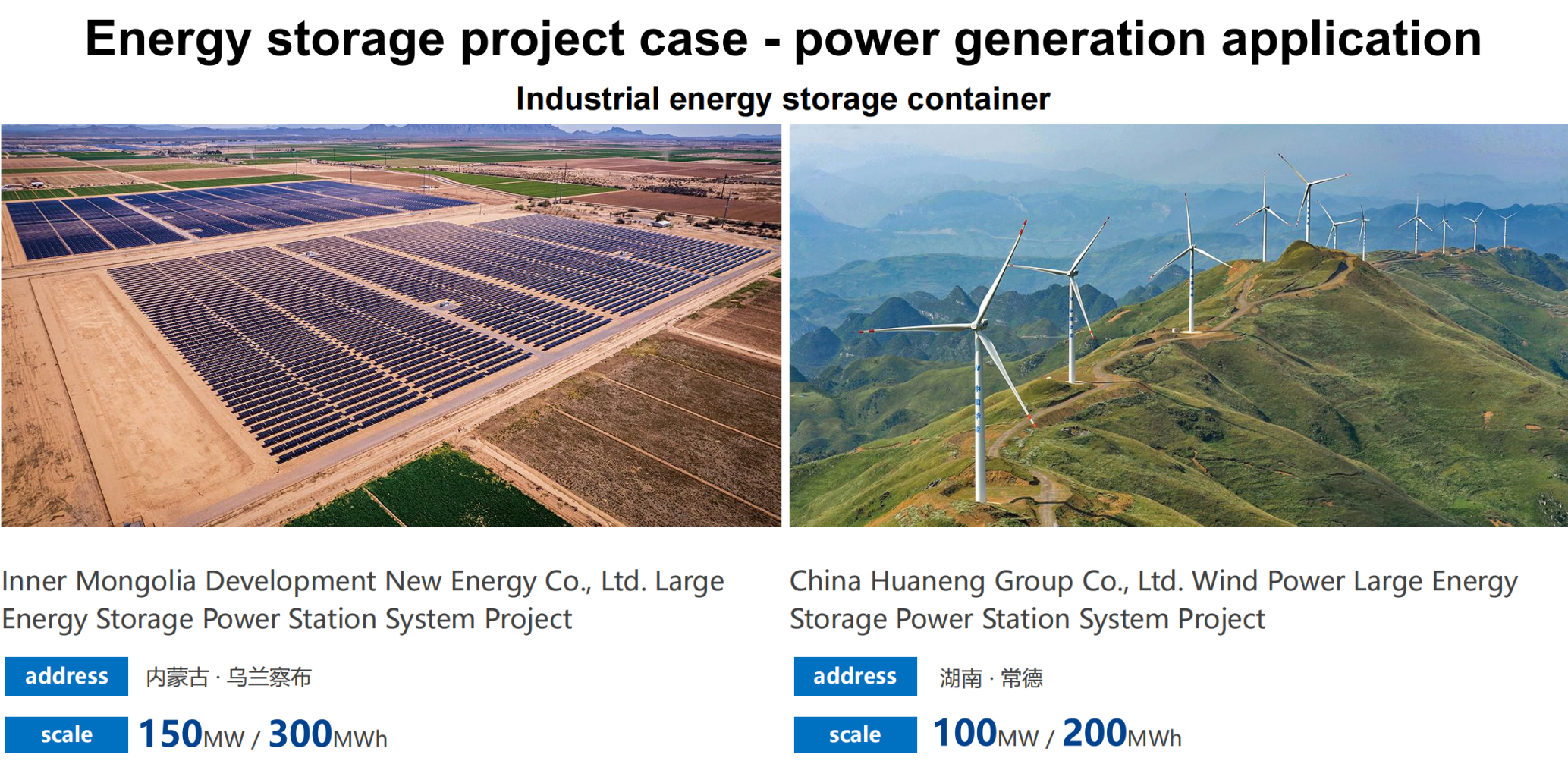

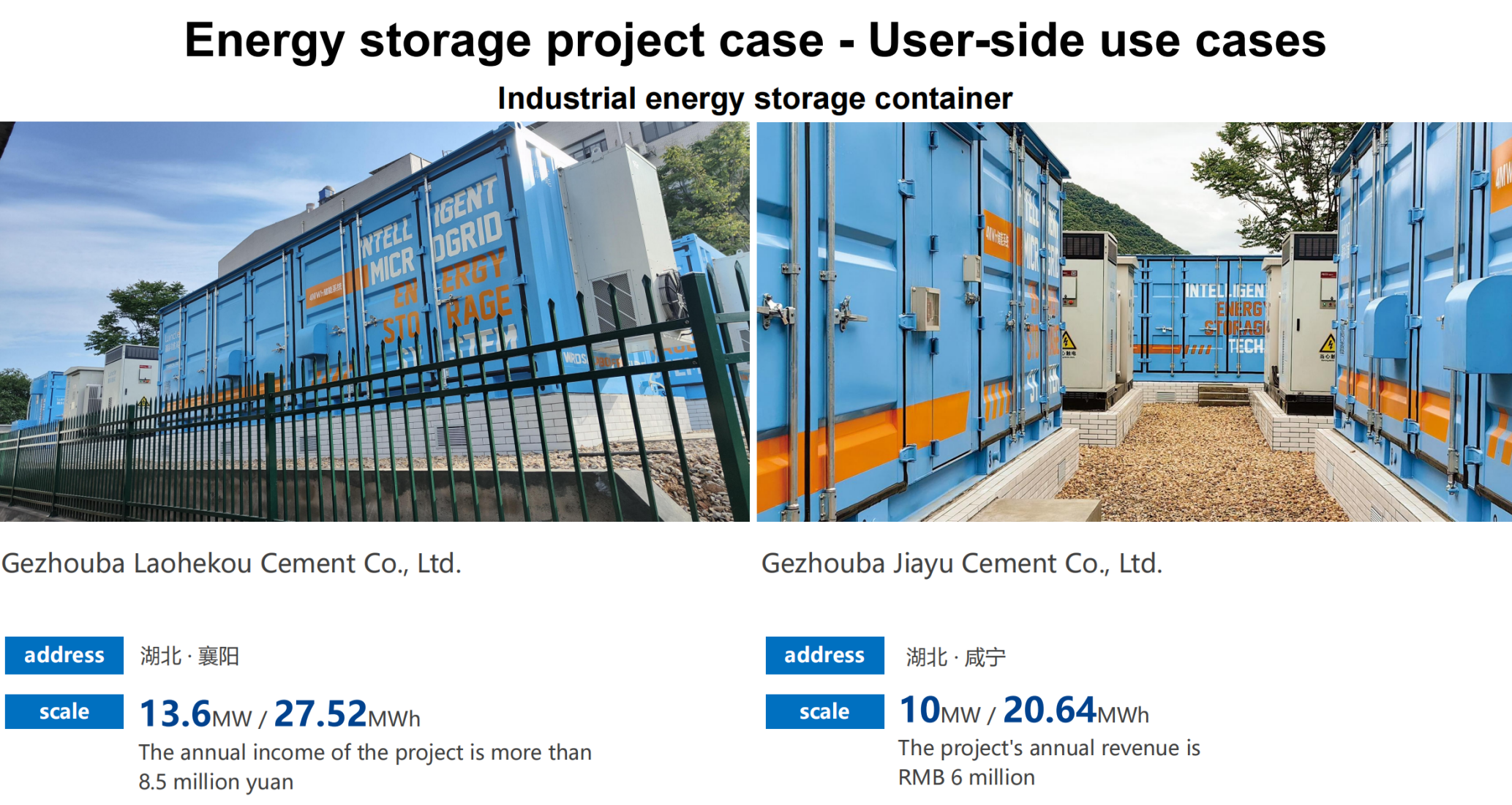

光储项目案例Energy Storage Project Case
- 相关资料 Related Data
相关文件 Related Data
